Popis produktu

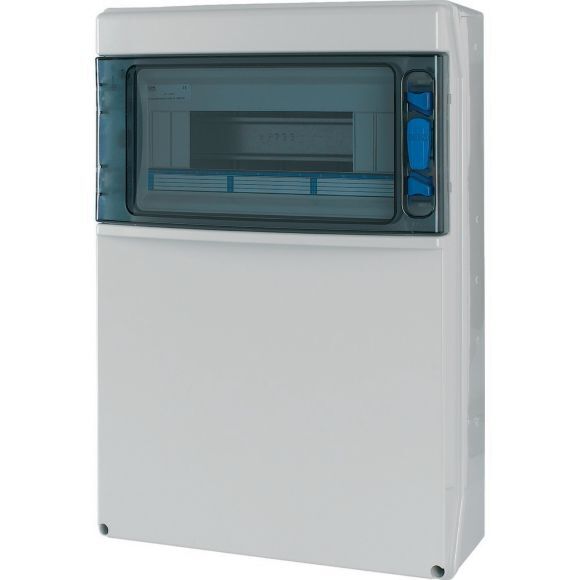

IKA damp location compact distribution board; RAL 7035, with neutral and protective conductor terminals; CNC foamed-in-place gasket for IP65Prachotěsnost, ochrana před dotykem drátem a voděodolnost před tryskající vodou. Nejčastěji využívané pro průmyslová prachotěsná svítidla, venkovní osvětlení, ale i pro koupelnová svítidla v zóně 1, tedy v nejbližším prostoru u zdroje vody nad vanu a do sprchového koutu. degree of protection as defined in IEC/EN 62208; 18 space units; single-row; UV-stable as defined in DIN EN ISO 4892-2; approved for building service distribution boards conforming to IEC/EN 61439-3 VDE 0660-600-3; integrated module compensation for various device widths; metric cable knockouts with centering point: 100% polycarbonate enclosure (UV-resistant) ; for installing switchgear and protective devices as per dimensional standard DIN 43 880 with 70 mm or 85 mm mounting depth; 1000 VAC, 1500 VDC; RoHs-compliant; made up of a plastic bottom part with a DIN-rail made of galvanized sheet steel; DIN-rail depth-adjustable in 2 positions; direct mounting on wall mounting holes; finger-safe IP2X neutral and protective conductor terminals; knockouts for metric cable entries on top and bottom; knockouts on the sides for connectors that can be used to connect two or more enclosures next to each other ; top part with 46 mm device opening; transparent door flush at front; can be set up as a right-hand or left-hand door; door stop can be easily changed on-site later on without having to remove the enclosure top; built-in sockets (CEE 7/4 (Schuko) outlets and IEC 60309 (CEE 17) industrial outlets), emergency stop buttons can be installed; enclosure top with sealable quick closures; door can be locked with LOCK-KIT-IKA accessory; door can be sealed; incl. blanking strip and inscription label.
