Popis produktu

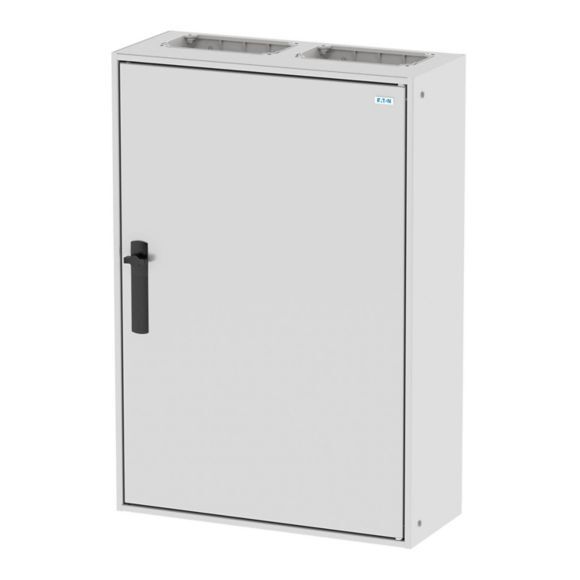

EWK wall-mount enclosure including standard mounting units, 120 SU for modular DIN devices, Plastic protective shroud, Galvanized high-grade steel mounting rails, Compact enclosure dimensions, since the depth is only 230 mm, Rated operational current max. 160A, for direct mounting on the wall, IP31 degree of protection as per standard IEC/EN 62208, Protection class 2, isolation protection, Adjustable hinges for easily changing the door handing, very sturdy, door 1 wing, 1 clip-in, cable entry via F3A-2K flanges (not included) possible, including N-terminal: 2x (6x2.5-16mm² + 21x1.5-4mm²), including PE-terminal: 2x (6x2.5-16mm² + 21x1.5-4mm²), Color: white, RAL 9016
