Popis produktu

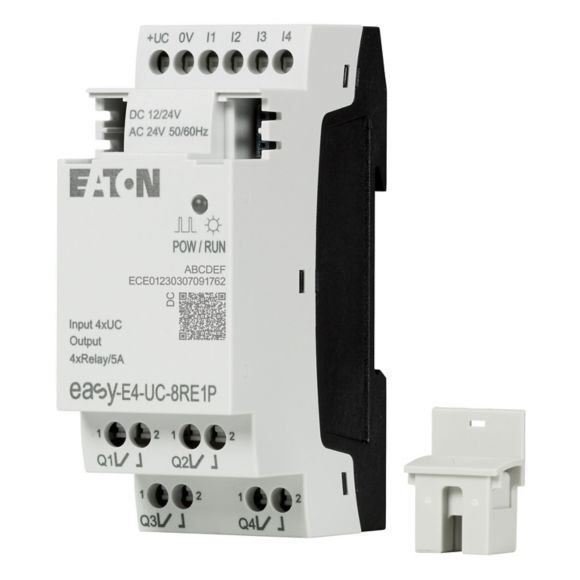

I/O expansion for control relays in the easyE4 series with a rated operating voltage of 12 VDC, 24 VDC or 24 VAC. This expansion provides 4 digital inputs for 12 VDC, 24 VDC or 24 VAC and 4 relay outputs for 12–250 VAC or 12–220 VDC. Connections are established using push-in terminals. The connection to the control relay or any other expansion in the easyE4 series is established using the EASY-E4-CONNECT1 connector (item 197225), which is included as standard.
