Popis produktu

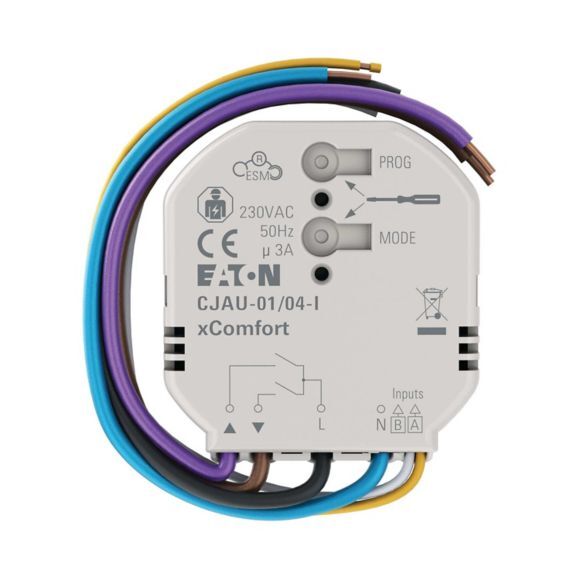

The flush-mounted shutter actuators with local input are particularly characterized by their slim dimensions and extended control functionality. The actuator control drives of shutters, blinds, shades etc. are equipped with a 230 V AC motor (up to 3 A) and an integrated end-position switch. The device tracks the actual position of the shades and has predefined, selectable profiles to optimize the operation of the to be controlled application, e.g. shutters, slatted blinds, awnings etc. Furthermore, the actuator also provides numerous safety functions such as a safety position in case of wind and / or rain as well as a lockout protection to ensure shutters or blinds will not close if the terrace door is open. The mains-powered solution is typically placed in an installation box and combined with either a socket outlet or a wireless switch. The two 230 V AC local input sensors enable the actuator to be used with an existing or any other mechanical push-switch available on the market. Note: Never connect multiple shading motors in parallel to a single shutter actuator without integrating a cut-off relay.
